Case study

Centrifugal fans for extraction in a blasting and conservation hall

Need to find the best fan for extraction in a blasting and conservation hall? You’re in the right place with Slingerland! Read here how we helped a manufacturer of blasting and spraying booths with the ideal medium-pressure centrifugal fans, so their customer could carry out their work with ideal air management.

Our industrial fans regulate the air management exactly according to your wishes

We make a difference every day at Slingerland, with top-quality industrial fans. In this case study, a leading company in the Netherlands, which specialises in spraying XL products in mega coating halls, was looking for an all-in solution for blasting and spraying products. Products of this size are usually blasted and sprayed in separate halls, which of course means a lot of time is taken up with transportation.

The company in question made an enquiry to our client – a manufacturer of blasting and spraying booths, powder coating installations and pre-processing lines – who built a fantastic installation, exactly in accordance with their customer’s requirements. They used Slingerland’s efficient medium-pressure fans, designed specifically for industry, so that the entire air management system functions exactly as required.

Which fans are suitable for air extraction in a blasting hall?

This company’s challenge was to choose the right industrial fans, not just with the desired flow rate and pressure, but which were also explosion-proof. They also needed to be suitable for outdoor use.

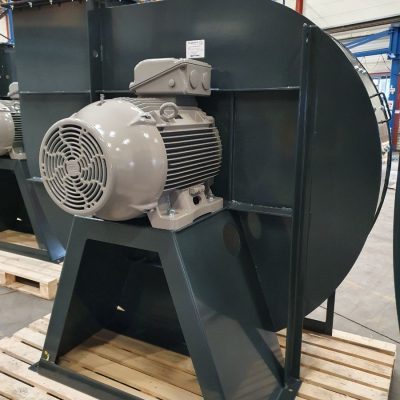

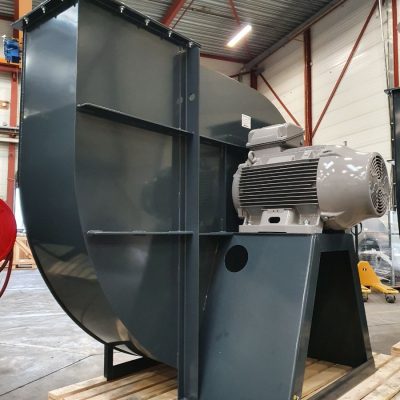

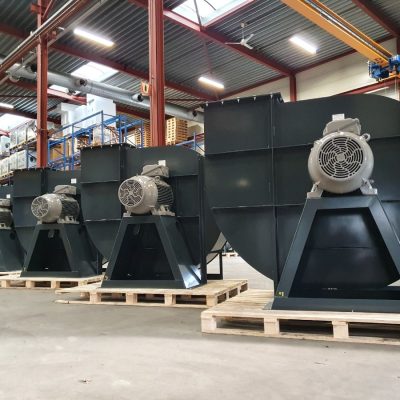

The solution? Type TR 1121 directly-driven centrifugal fans. These high-pressure centrifugal fans have an extra external coating, which makes them 100% weatherproof. We’ve also added an extra layer to the centrifugal fans’ WEG motors, so they’re the ideal fans for extraction in a blasting hall!

These medium-pressure fans can each extract air at 32,000 m3/h, with a static pressure capacity of 4110 pascals at 15°C. With a power consumption of 47.6kW, we were therefore able to select a fan with 83.8% efficiency and a very low noise level. We ticked all the boxes one by one, resulting in a happy customer!

What kind of centrifugal fans do you need to optimise your operation? We can help you find out!

Are you also experiencing problems with the air management in your company, and you’d like to meet us with no obligation to see what we can do for your business process? At Slingerland, we’re happy to invite you for a personal consultation, in which we run through which centrifugal or other industrial fans would be suitable for your project. Contact us here for an appointment. Speak soon!
